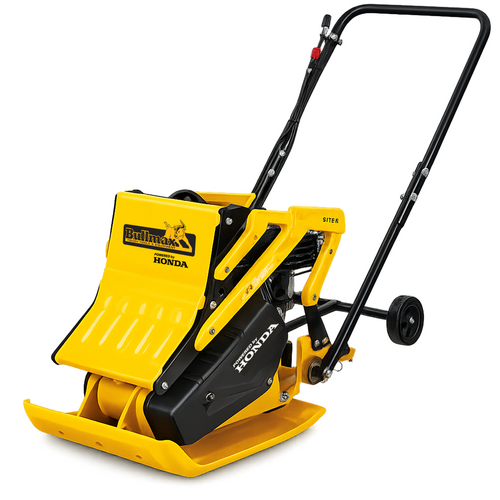

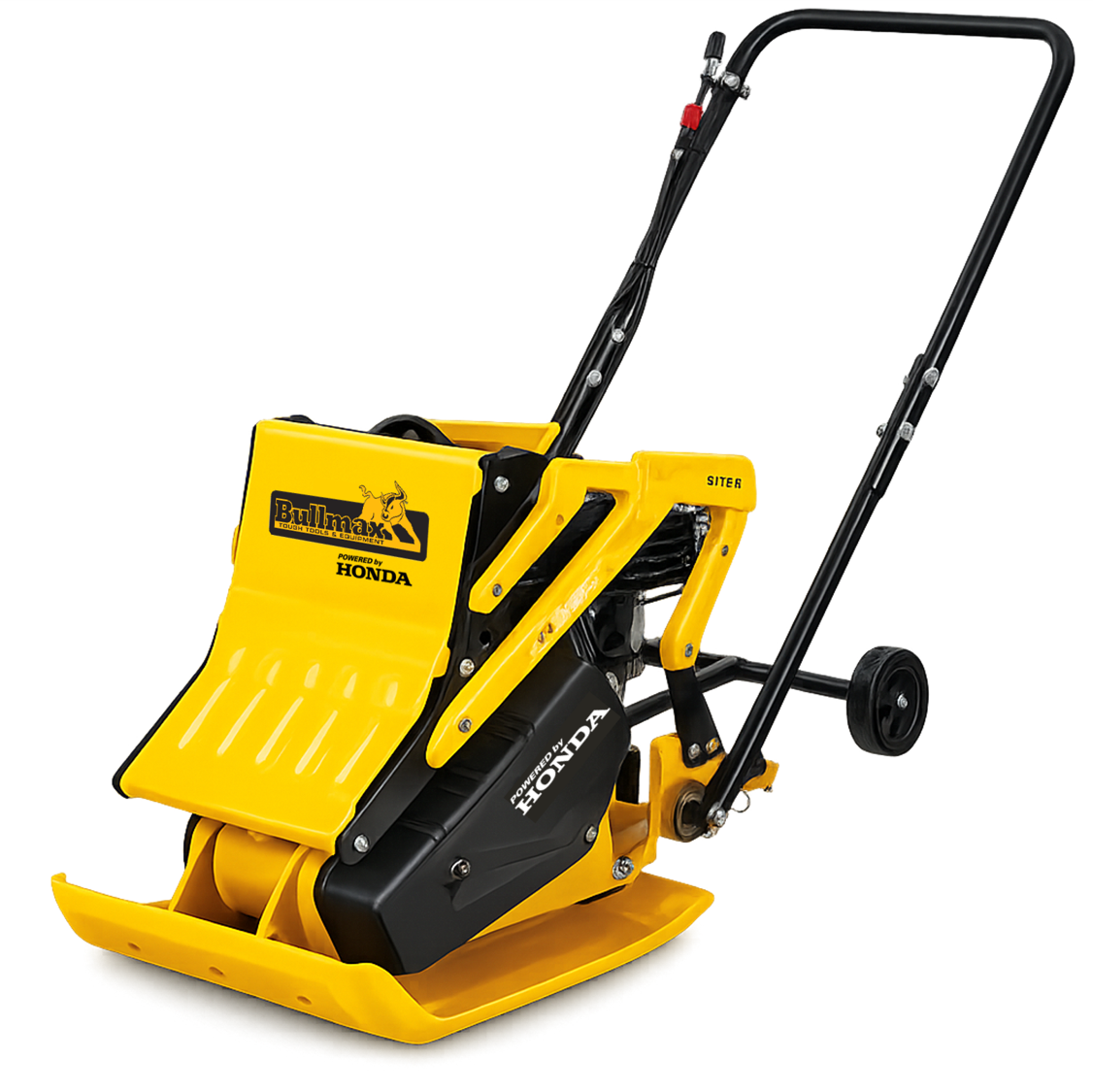

Bullmax Plate Compactor Heavy-Duty Professional – 4-Stroke Honda GX200 Engine (BMPC1100-GX200)

Maximum compaction power for serious jobs! The Bullmax BMPC1100-GX200 is our professional-grade plate compactor engineered and assembled in Australia for the most demanding commercial compaction work. Powered by the legendary Honda GX200 4-Stroke engine (196cc, 6.5HP), this heavy-duty compactor delivers exceptional performance for civil contractors, road construction, large-scale landscaping, and municipal projects.

Built for maximum productivity on large areas and deep compaction requirements, this powerhouse machine combines a massive 590×500mm working plate with 25,000N of centrifugal force – delivering up to 35cm compaction depth. The BMPC1100-GX200 is the go-to choice when you need serious compaction power that gets the job done right the first time, saving time and labor on every project.

Key Features & Benefits

• Honda GX200 4-Stroke Engine – Legendary 196cc, 6.5HP commercial powerplant with proven reliability
• Maximum Compaction Force – 25,000N centrifugal force for the deepest, most effective compaction
• Professional Performance – 5,500 VPM with industry-leading 35cm compaction depth
• Large Working Plate – 590×500mm plate covers more ground per pass for faster job completion
• High Productivity – 32 m/min forward travel speed maximizes coverage on large sites
• Heavy-Duty Construction – Professional-grade 111kg operation weight provides superior stability and compaction effectiveness
• Commercial-Grade Components – Built for daily use on demanding jobsites
• Low Vibration Handles – Advanced vibration dampening system reduces operator fatigue during all-day operation
• Water Tank System – Integrated water delivery prevents asphalt adhesion on hot mix paving
• Heavy-Duty Transport Wheels – Professional wheels for easy maneuvering of 111kg unit around site
• Complete Accessory Package – Includes protective mat, water tank, paving pad, and transport wheels
• Australian Designed & Assembled – Engineered for Australian conditions with local support
• 3-Year Honda Engine Warranty + 1-Year Compactor Warranty for maximum peace of mind

Professional applications:

• Road construction and major civil works
• Commercial parking lots and large driveways
• Asphalt paving and hot mix compaction
• Deep trench backfill and utility installations
• Large-scale foundation and slab preparation
• Industrial and commercial site development
• Municipal roadwork and footpath construction
• Sports field and recreation area base preparation

Specifications

• Model: BMPC1100-GX200 (Model 101170)
• Engine: Honda GX200, 4-Stroke OHV
• Displacement: 196cc
• Power: 6.5 HP @ 3,600 RPM
• Fuel Type: Unleaded petrol - 4 Stroke
• Centrifugal Force: 25,000 N
• Exciter Speed: 5,500 VPM (vibrations per minute)
• Compaction Depth: 35 cm (350mm)
• Plate Size: 590 × 500 mm
• Travel Speed: 32 m/min forward
• Operation Weight: 111 kg
• Handle Type: Professional foldable low-vibration design
• Water System: Integrated tank for asphalt work
• Starting System: Recoil pull start
• Warranty:
  • Honda Engine – 3 Years (Honda Australia Certified)
  • Bullmax Driver – 12 Months
